STL300N4LF8

N-channel Power MOSFET

STL300N4LF8 Features

* Order code STL300N4LF8 VDS 40 V RDS(on) max. 1.0 mΩ ID 304 A PowerFLAT 5x6

* MSL1 grade

* 175 °C maximum operating junction temperature

* 100% avalanche tested

* Low gate charge Qg D(5, 6, 7, 8) Applications 8 76 5

* Industrial tools, motor drives and

STL300N4LF8 General Description

The STL300N4LF8 is a 40 V N-channel enhancement mode Power MOSFET designed in STripFET F8 technology featuring an enhanced trench gate structure. It ensures a state-of-the-art of figure of merit for very low on-state resistance while reducing internal capacitances and gate charge for faster and more.

STL300N4LF8 Datasheet (601.54 KB)

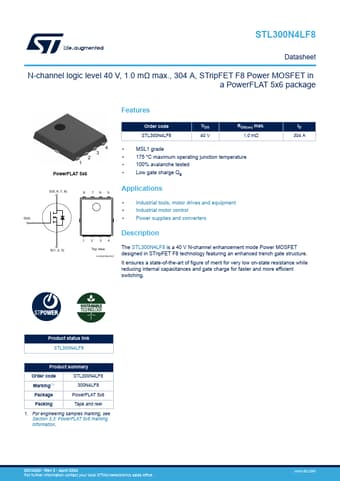

Preview of STL300N4LF8 PDF

Datasheet Details

Part number:

STL300N4LF8

Manufacturer:

STMicroelectronics ↗

File Size:

601.54 KB

Description:

N-channel power mosfet.
