STL3N10F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

STL3N10F7 Datasheet Preview — Preview of STL3N10F7 PDF

Datasheet Details

Part number	STL3N10F7
Manufacturer	STMicroelectronics ↗
File Size	428.40 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STL3N10F7-STMicroelectronics.pdf

STL3N10F7 Product details

Description

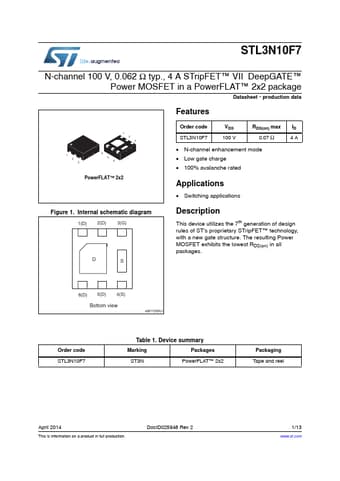

th This device utilizes the 7 generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.6(D) 5(D) 4(S) Bottom view AM11269v1 Order code STL3N10F7 Table 1. Device summary Marking Packages ST3N PowerFLAT™ 2x2 Packaging Tape and reel April 2014 This is information on a product in full production.DocID025948 Rev 2 1/13 www.st.com Contents Contents STL3N10F7 1 Electrical ratin

Features

1 2 3 1 2 3 6 5 4 PowerFLAT™ 2x2 Order code STL3N10F7 VDS 100 V RDS(on) max 0.07 Ω.
N-channel enhancement mode.
Low gate charge.
100% avalanche rated ID 4A.
