STL3NM60N N-channel Power MOSFET

STMicroelectronics

Description

STL3NM60N Datasheet N-channel 600 V, 1.5 Ω typ., 2.2 A MDmesh II Power MOSFET in a PowerFLAT 3.3x3.3 HV package 123 4 876 5 567 8 PowerFLAT 3.3x3..
This device is an N-channel Power MOSFET developed using the second generation of MDmesh technology.

📥 Download Datasheet

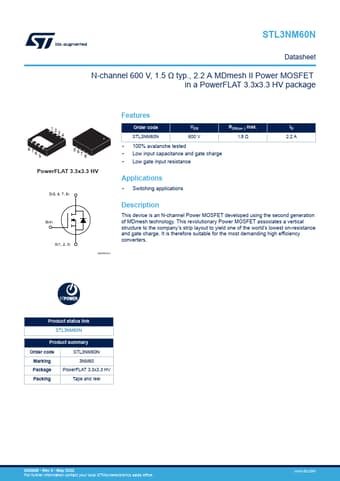

STL3NM60N Datasheet Preview — Preview of STL3NM60N PDF

Datasheet Specifications

Part number: STL3NM60N
Manufacturer: STMicroelectronics ↗
File Size: 335.25 KB
Datasheet: STL3NM60N-STMicroelectronics.pdf
Description: N-channel Power MOSFET

Features

* Order code VDS RDS(on ) max. STL3NM60N 600 V 1.8 Ω
* 100% avalanche tested
* Low input capacitance and gate charge
