STL35NF3LL N-CHANNEL MOSFET

STL35NF3LL Description

www.DataSheet4U.com N-CHANNEL 30V - 0.0055Ω - 35A PowerFLAT™ LOW GATE CHARGE STripFET™ MOSFET TYPE STL35NF3LL s s s STL35NF3LL TARGET DATA VDSS 30 .
This Power MOSFET is the second generation of STMicroelectronics unique “STripFET™” technology.

STL35NF3LL Applications

* s DC-DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(#) IDM (q) PTOT dv/dt(1) EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Current (

📥 Download Datasheet

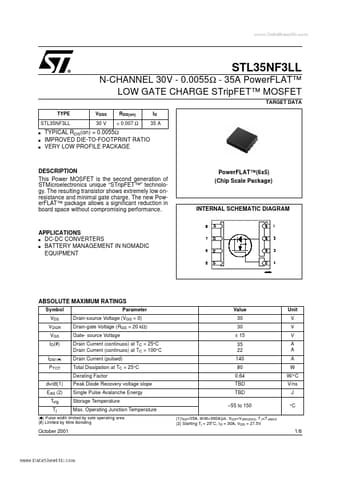

Preview of STL35NF3LL PDF
datasheet Preview Page 2 datasheet Preview Page 3
