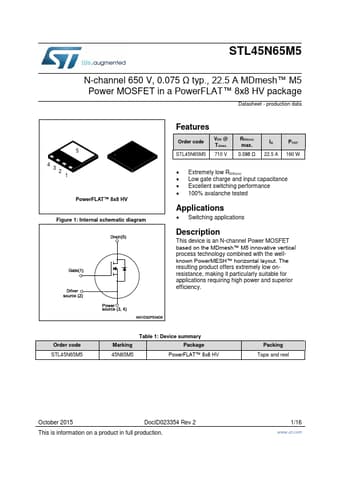

STL45N65M5 Datasheet, Mosfet, STMicroelectronics

STL45N65M5 Features

• Mosfet Order code STL45N65M5 VDS @ TJmax. 710 V RDS(on) max. 0.086 Ω ID PTOT 22.5 A 160 W
• Extremely low RDS(on)
• Low gate charge and input capacitance
• Excelle

PDF File Details

Part number:

STL45N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

738.00kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the wellknown P

STL45N65M5 Application

• Applications
• Switching applications Description This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical proce
