STP260N4F7 Datasheet, Mosfet, STMicroelectronics

STP260N4F7 Features

  • Mosfet Order code STP260N4F7 VDS 40 V RDS(on)max 2.2 mΩ ID 120 A PTOT 235 W Figure 1: Internal schematic diagram D(2, TAB) G(1) Features
  • Among the lowest RDS(on) on the market

PDF File Details

Part number:

STP260N4F7

Manufacturer:

STMicroelectronics ↗

File Size:

560.63kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

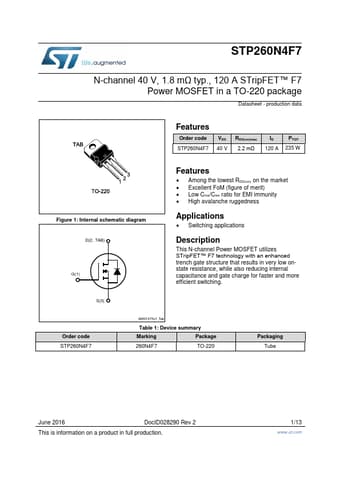

Datasheet Preview: STP260N4F7 📥 Download PDF (560.63kb)
Page 2 of STP260N4F7 Page 3 of STP260N4F7

STP260N4F7 Application

  • Applications
  • Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate

TAGS

STP260N4F7
N-channel
Power
MOSFET
STMicroelectronics
