STP26N60M2 Datasheet, Mosfet, STMicroelectronics

STP26N60M2 Features

  • Mosfet Order code STP26N60M2 STW26N60M2 VDS @ TJmax 650 V RDS(on) max. 0.165 Ω ID 20 A PTOT 169 W
  • Extremely low gate charge
  • Excellent output capacitance (COSS) profil

PDF File Details

Part number:

STP26N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

641.36kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical s

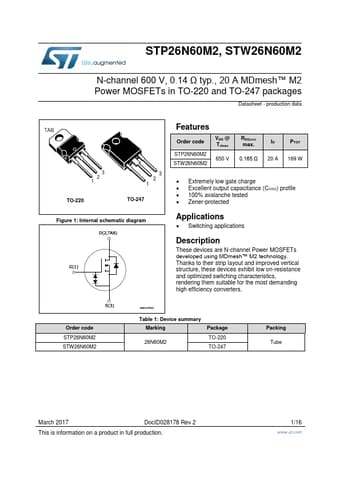

Datasheet Preview: STP26N60M2 📥 Download PDF (641.36kb)
Page 2 of STP26N60M2 Page 3 of STP26N60M2

STP26N60M2 Application

  • Applications
  • Switching applications Description These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to
