STP265N6F6AG - Automotive-grade N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

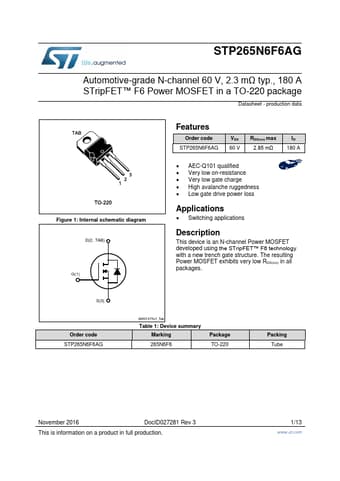

STP265N6F6AG Datasheet Preview — Preview of STP265N6F6AG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STP265N6F6AG
Manufacturer	STMicroelectronics ↗
File Size	628.88 KB
Description	Automotive-grade N-channel Power MOSFET
Datasheet	STP265N6F6AG-STMicroelectronics.pdf

STP265N6F6AG Product details

Description

This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure.

Features

Order code STP265N6F6AG VDS 60 V RDS(on) max 2.85 mΩ ID 180 A.
AEC-Q101 qualified.
Very low on-resistance.
Very low gate charge.
High avalanche ruggedness.
Low gate drive power loss.
