STPS1545G

Power Schottky rectifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics STPS1545G DIODE SCHOTTKY 45V 15A D2PAK DigiKey 0 2000 units
$0.55

STPS1545G Datasheet (518.00 KB)

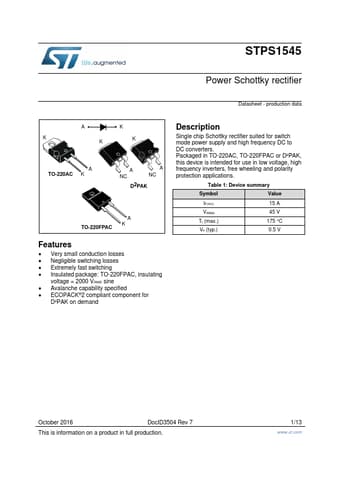

Preview of STPS1545G PDF Datasheet

Datasheet Details

Part number:

STPS1545G

Manufacturer:

STMicroelectronics ↗

File Size:

518.00 KB

Description:

Power schottky rectifier

STPS1545G Features

* Very small conduction losses

* Negligible switching losses

* Extremely fast switching

* Insulated package: TO-220FPAC, insulating voltage = 2000 VRMS sine

* Avalanche capability specified

* ECOPACK®2 compliant component for D²PAK on demand Description Single chip Schottky

STPS1545G General Description

Single chip Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-220AC, TO-220FPAC or D²PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. Table 1: Device summary.
