STPS2150

2A power Schottky rectifier

STPS2150 Features

* Negligible switching losses

* Low forward voltage drop for higher efficiency and extended battery life

* Low thermal resistance

* Surface mount miniature package

* Avalanche capability specified

* ECOPACK2 compliant Applications

* Switching d

STPS2150 General Description

This 150 V power Schottky rectifier is ideal for switch mode power supplies on up to 24 V rails and high frequency converters. Packaged in SMA, SMA Flat Notch and axial, the STPS2150 is optimized for use in consumer and computer applications where low drop forward voltage is required to reduce power.

STPS2150 Datasheet (346.06 KB)

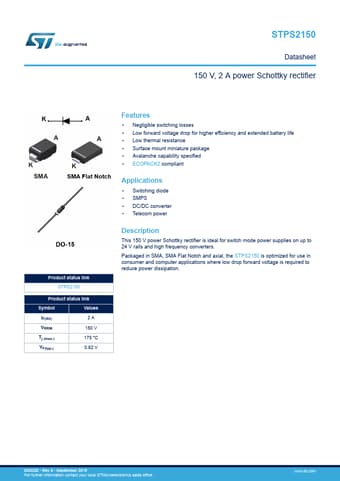

Preview of STPS2150 PDF

Datasheet Details

Part number:

STPS2150

Manufacturer:

STMicroelectronics ↗

File Size:

346.06 KB

Description:

2a power schottky rectifier.
STPS2150 Datasheet 150 V, 2 A power Schottky rectifier Product status link STPS2150 Product status link Symbol Values IF(AV) 2A VRRM 150 V Tj.
