STPS2170

2A power Schottky rectifier

STMicroelectronics

STPS2170 Features

* Negligible switching losses

* High junction temperature capability

* Very small conduction losses

* Low leakage current

* Avalanche rated

* ECOPACK2 component Applications

* Switching diode

* SMPS

* DC / DC converter

STPS2170 General Description

The STPS2170 is a 170 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SMA Flat and SMA Flat Notch, the STPS2170 is ideal for use in low voltage, high frequency inverters, freewheeling and polarity protection. Also ideal for all LED light.

STPS2170 Datasheet (346.75 KB)

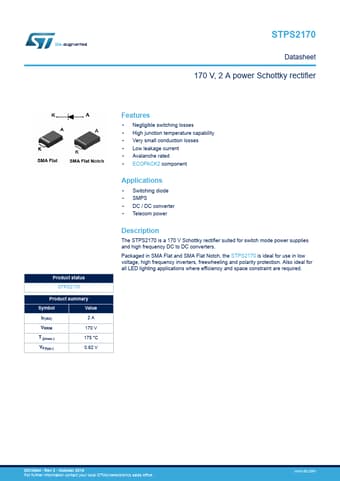

STPS2170 Datasheet Preview — Preview of STPS2170 PDF

Datasheet Details

Part number:

STPS2170

Manufacturer:

STMicroelectronics ↗

File Size:

346.75 KB

Description:

2a power schottky rectifier.
STPS2170 Datasheet 170 V, 2 A power Schottky rectifier Product status STPS2170 Product summary Symbol Value IF(AV) 2A VRRM 170 V T j(max.) 1.
