STPS30SM120S Power Schottky rectifier

STPS30SM120S Description

$ .$ .72)3$% .$ .$ $ 72$% .$ .,ð3$.$ .$ $ .72$% $ QDUURZOHDGV .
This Schottky diode is suited for high frequency switch mode power supply.

STPS30SM120S Features

* High current capability
* Avalanche rated
* Low forward voltage drop
* High frequency operation
* Insulated package TO220FP-AB:
* Insulated voltage: 2000 VRMS sine
* ECOPACK®2 compliant component on TO-220AB and TO-220FPAB. STPS30SM120S Pow

STPS30SM120S Applications

* a good efficiency at both low and high load. Table 1. Device summary Symbol Value IF(AV) VRRM Tj VF (typ) 30 A 120 V 150 °C 0.47 V Figure 1. Electrical characteristics(a) VI "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF(Io) VF VF(2xIo) IAR November 2014 This is info

📥 Download Datasheet

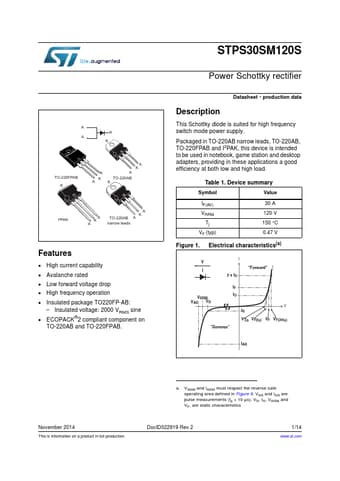

Preview of STPS30SM120S PDF
