STPS360 - Power Schottky rectifier

STMicroelectronics

The STPS360 by STMicroelectronics is a Power Schottky rectifier. Below is the official datasheet preview.

📥 Download Datasheet

STPS360 Power Schottky rectifier by STMicroelectronics - Datasheet Preview — Official preview page of the **STPS360** Power Schottky rectifier datasheet (STMicroelectronics).

Datasheet Details

Part number	STPS360
Manufacturer	STMicroelectronics
File Size	241.71 KB
Description	Power Schottky rectifier
Datasheet	STPS360-STMicroelectronics.pdf

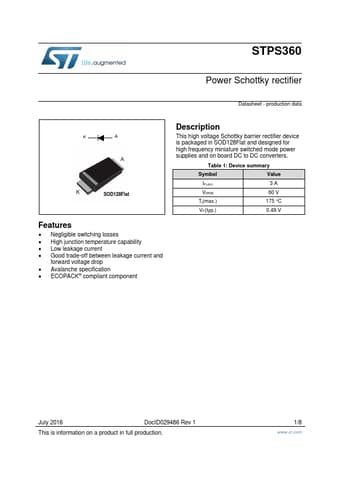

Additional preview pages of the STPS360 datasheet.

STPS360 Product details

Description

This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and on board DC to DC converters.

Features

Negligible switching losses.
High junction temperature capability.
Low leakage current.
Good trade-off between leakage current and forward voltage drop.
Avalanche specification.
