STPS41L45C, STPS41L45CG LOW DROP POWER SCHOTTKY RECTIFIER

STMicroelectronics

Description

® STPS41L45CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) 2 x 20 A 45 V 150 °C VF (max) 0.47 V .
Dual center tab Schottky rectifier suited for 5V output in off line AC/DC power supplies.

📥 Download Datasheet

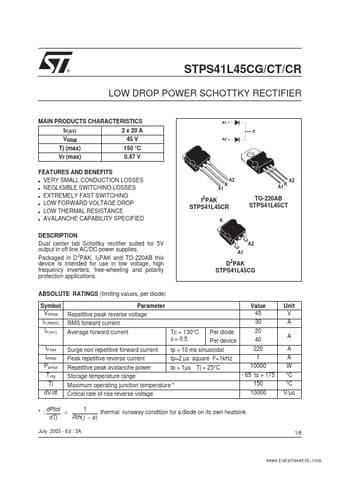

STPS41L45C Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS41L45C, STPS41L45CG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS41L45C, STPS41L45CG
Manufacturer: STMicroelectronics ↗
File Size: 75.35 KB
Datasheet: STPS41L45CG_STMicroelectronics.pdf
Description: LOW DROP POWER SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: STPS41L45C, STPS41L45CG.
Please refer to the document for exact specifications by model.

Applications

* A1 K A2 A2 K A1 I2PAK STPS41L45CR K A2 A1 K TO-220AB STPS41L45CT A2 A1 D2PAK STPS41L45CG ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt Parameter Repetitive peak reverse voltage RMS forward current Average forward current Tc = 130°C
