STPS41L45CR, STPS41L45CG LOW DROP POWER SCHOTTKY RECTIFIER

STPS41L45CR Description

® STPS41L45CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 45 V 150 °C 0.47 V A1 K .
Dual center tab Schottky rectifier suited for 5V output in off line AC/DC power supplies.

STPS41L45CR Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt Parameter Repetitive peak reverse voltage RMS forward current Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power Storage te

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS41L45CR, STPS41L45CG. Please refer to the document for exact specifications by model.

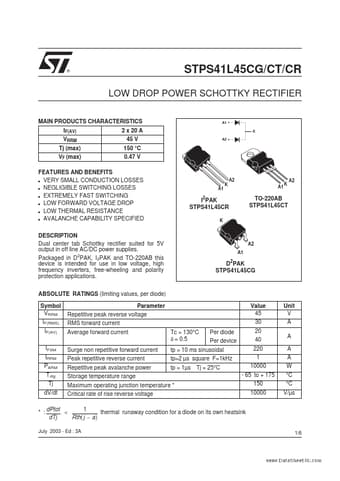

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS41L45CR, STPS41L45CG
Manufacturer
STMicroelectronics ↗
File Size
75.35 KB
Datasheet
STPS41L45CG_STMicroelectronics.pdf
Description
LOW DROP POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS41L45CR, STPS41L45CG.
Please refer to the document for exact specifications by model.
