STPS41L30C, STPS41L30CG LOW DROP POWER SCHOTTKY RECTIFIER

STPS41L30C Description

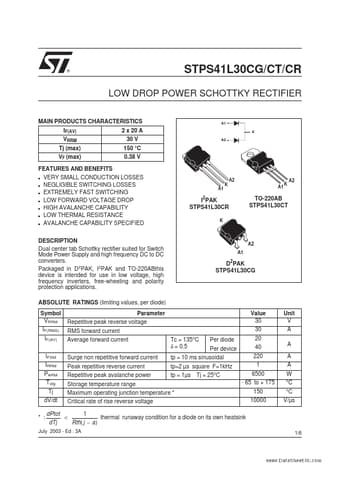

® STPS41L30CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) 2 x 20 A 30 V 150 °C VF (max) 0.38 V .
Dual center tab Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

STPS41L30C Applications

* A2 A1 D2PAK STPS41L30CG ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt Parameter Repetitive peak reverse voltage RMS forward current Average forward current Tc = 135°C δ = 0.5 Per diode Per device Surge non repetitive forward current
