STPS41L30CT, STPS41L30CG LOW DROP POWER SCHOTTKY RECTIFIER

STMicroelectronics

Description

® STPS41L30CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 30 V 150 °C 0.38 V A1 K .
Dual center tab Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

📥 Download Datasheet

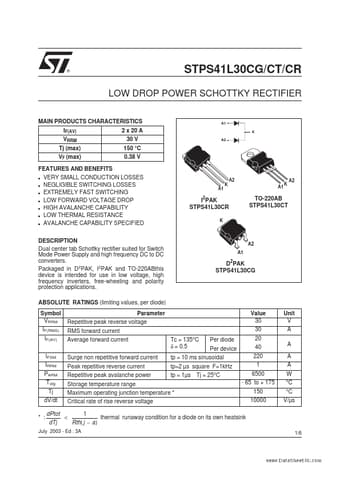

STPS41L30CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS41L30CT, STPS41L30CG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPS41L30CT, STPS41L30CG
Manufacturer: STMicroelectronics ↗
File Size: 74.80 KB
Datasheet: STPS41L30CG_STMicroelectronics.pdf
Description: LOW DROP POWER SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: STPS41L30CT, STPS41L30CG.
Please refer to the document for exact specifications by model.

Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt
* : Parameter Repetitive peak reverse voltage RMS forward current Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power St
