STPS41L30CR, STPS41L30CG LOW DROP POWER SCHOTTKY RECTIFIER

STPS41L30CR Description

® STPS41L30CG/CT/CR LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 20 A 30 V 150 °C 0.38 V A1 K .
Dual center tab Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

STPS41L30CR Applications

* ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM PARM Tstg Tj dV/dt
* : Parameter Repetitive peak reverse voltage RMS forward current Average forward current Surge non repetitive forward current Peak repetitive reverse current Repetitive peak avalanche power St

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS41L30CR, STPS41L30CG. Please refer to the document for exact specifications by model.

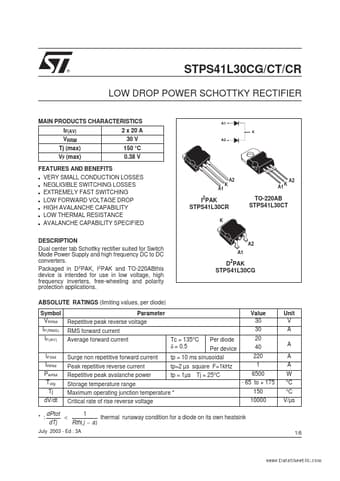

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS41L30CR, STPS41L30CG
Manufacturer
STMicroelectronics ↗
File Size
74.80 KB
Datasheet
STPS41L30CG_STMicroelectronics.pdf
Description
LOW DROP POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS41L30CR, STPS41L30CG.
Please refer to the document for exact specifications by model.
