STPS41L60C, STPS41L60CG Power Schottky rectifier

STPS41L60C Description

Document CD00002861 Revision 6.1 IN APPROVAL 4 / 12 STPS41L60C Power Schottky rectifier .
These dual center tap Schottky rectifiers are suited for switch mode power supplies and high frequency DC to DC converters.

STPS41L60C Features

* Low forward voltage drop
* Negligible switching losses
* Low thermal resistance

STPS41L60C Applications

* Figure 1. Electrical characteristics (a) V I "Forward" I 2 x IO X VRRM VAR VR IF IO IR X V "Reverse" VTo VF(Io) VF VF(2xIo) IAR Draft - Draft - Draft A1 K A2 K K A2 K A1 I2PAK STPS41L60CR K A2 A1 K TO-220AB STPS41L60CT A2 A1 D2PAK STPS41L60CG Table 1. Device summary IF(AV) VRRM T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS41L60C, STPS41L60CG. Please refer to the document for exact specifications by model.

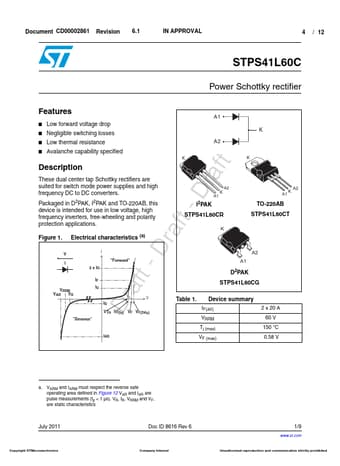

datasheet Preview Page 2 datasheet Preview Page 3
