STSPIN830

Compact and versatile three-phase and three-sense motor driver

STSPIN830 Features

* Operating voltage from 7 to 45 V

* Maximum output current 1.5 Arms

* RDSon HS + LS = 1  typ.

* Supporting both single and three shunts architectures

* Current control with adjustable OFF time

* Current sensing based on external shunt resistors

* Flexible driving method

STSPIN830 Datasheet (615.01 KB)

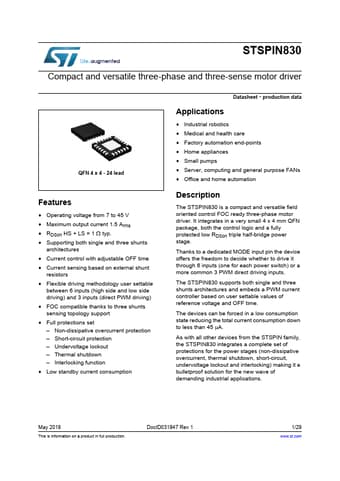

Preview of STSPIN830 PDF

Datasheet Details

Part number:

STSPIN830

Manufacturer:

STMicroelectronics ↗

File Size:

615.01 KB

Description:

Compact and versatile three-phase and three-sense motor driver.
