STSPIN840

Compact dual brushed DC motor driver

STMicroelectronics

STSPIN840 Features

* Operating voltage from 7 to 45 V

* Maximum output current 1.5 Arms

* RDSon HS + LS = 1  typ.

* Current control with adjustable OFF time

* Current sensing based on external shunt resistors

* Full protections set

* Non-dissipative overcurrent protection

* Sho

STSPIN840 General Description

The STSPIN840 is a compact brushed DC motor driver able to drive two bi-directional brushed DC motors simultaneously. It in.

STSPIN840 Datasheet (597.95 KB)

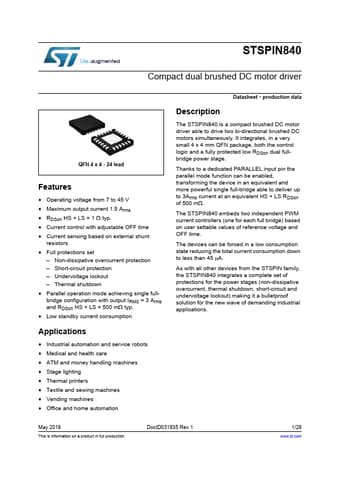

STSPIN840 Datasheet Preview — Preview of STSPIN840 PDF

Datasheet Details

Part number:

STSPIN840

Manufacturer:

STMicroelectronics ↗

File Size:

597.95 KB

Description:

Compact dual brushed dc motor driver.
