STTD6050H-12M2Y - bridge rectifier

STMicroelectronics

📥 Download Datasheet

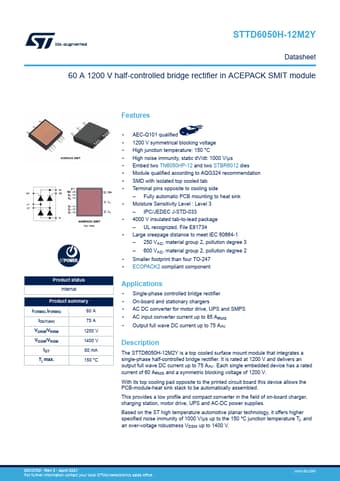

STTD6050H-12M2Y Datasheet Preview — Preview of STTD6050H-12M2Y PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STTD6050H-12M2Y
Manufacturer	STMicroelectronics ↗
File Size	920.52 KB
Description	bridge rectifier
Datasheet	STTD6050H-12M2Y-STMicroelectronics.pdf

STTD6050H-12M2Y Product details

Description

The STTD6050H-12M2Y is a top cooled surface mount module that integrates a single-phase half-controlled bridge rectifier.

Features

AEC-Q101 qualified.
1200 V symmetrical blocking voltage.
High junction temperature: 150 °C.
High noise immunity, static dV/dt: 1000 V/μs.
Embed two TN6050HP-12 and two STBR6012 dies.
Module qualified according to AQG324 recommendation.
SMD with isolated top cooled tab.
Terminal pins opposite to cooling side.
Fully automatic PCB mounting to heat sink.
Moisture Sensitivity Level : Level 3.
IPC/JEDEC.
