STU13005N Datasheet - STMicroelectronics

Datasheet Details

Part number:

STU13005N

Manufacturer:

STMicroelectronics ↗

File Size:

237.51 KB

Description:

High voltage fast-switching NPN power transistor

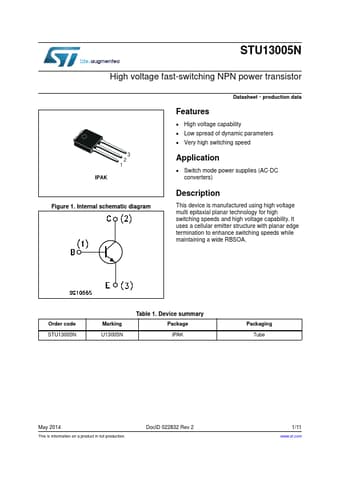

STU13005N High voltage fast-switching NPN power transistor IPAK 3 2 1 Figure 1.

Internal schematic diagram Datasheet - production data Features * High voltage capability * Low spread of dynamic parameters * Very high switching speed Application * Switch mode powe

STU13005N-STMicroelectronics.pdf

Preview of STU13005N PDF
STU13005N Datasheet Preview Page 2 STU13005N Datasheet Preview Page 3

STU13005N, High voltage fast-switching NPN power transistor

This device is manufactured using high voltage multi epitaxial planar technology for high switching speeds and high voltage capability.

It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining a wide RBSOA.

Order code STU13005N Marking U13005N
