STU13N65M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STU13N65M2 Features

* TAB TAB TO-220 3 2 1 3 2 1 IPAK Figure 1. Internal schematic diagram , TAB Order code STP13N65M2 STU13N65M2 VDS RDS(on) max ID 650 V 0.43Ω 10A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protec

STU13N65M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. Or.

STU13N65M2 Datasheet (505.96 KB)

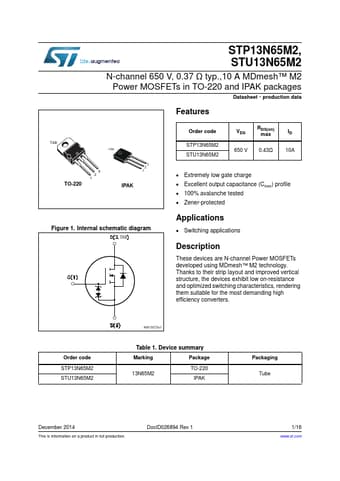

Preview of STU13N65M2 PDF

Datasheet Details

Part number:

STU13N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

505.96 KB

Description:

N-channel power mosfet.
