STU13NM60N N-CHANNEL Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

STF13NM60N, STI13NM60N STP13NM60N, STU13NM60N Datasheet N-channel 600 V, 280 mΩ typ., 11 A MDmesh II Power MOSFETs in a TO-220FP, I²PAK, TO-220 and IP.
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh technology.

📥 Download Datasheet

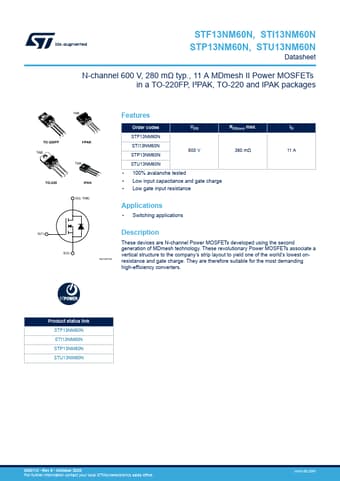

Preview of STU13NM60N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 3 12 TO-220FP TAB 1 23 I2PAK TAB TO-220 1 23 3 12 IPAK Order codes VDS RDS(on) max. STF13NM60N STI13NM60N STP13NM60N 600 V 360 mΩ STU13NM60N
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance ID 11 A D(2, TAB) Applica
