STU13N60M2 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

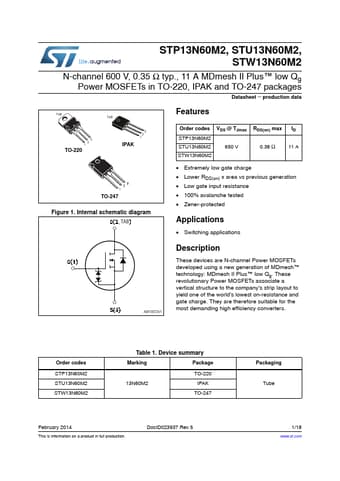

STU13N60M2 Datasheet Preview — Preview of STU13N60M2 PDF

Datasheet Details

Part number	STU13N60M2
Manufacturer	STMicroelectronics
File Size	713.80 KB
Description	N-channel Power MOSFET
Datasheet	STU13N60M2-STMicroelectronics.pdf

STU13N60M2 Product details

Description

AM15572v1 These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg.These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge.They are therefore suitable for the most demanding high efficiency converters.Order codes STP13N60M2 STU13N60M2 STW13N60M2 Table 1. Device summary Marking Package 13N60M2 TO-220 IPAK TO-247 Februar

Features

Order codes VDS @ TJmax RDS(on) max ID STP13N60M2 STU13N60M2 650 V 0.38 Ω 11 A STW13N60M2.
Extremely low gate charge.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected.
