STU80N4F6 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

STU80N4F6 Datasheet Preview — Preview of STU80N4F6 PDF

Datasheet Details

Part number	STU80N4F6
Manufacturer	STMicroelectronics
File Size	620.96 KB
Description	N-channel Power MOSFET
Datasheet	STU80N4F6-STMicroelectronics.pdf

STU80N4F6 Product details

Description

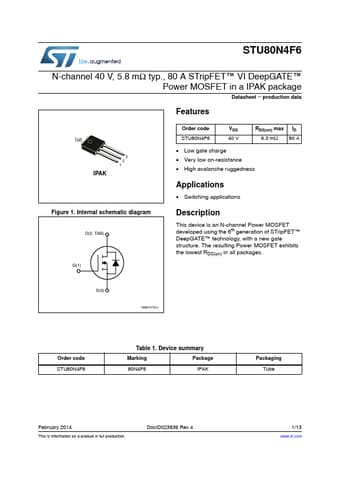

This device is an N-channel Power MOSFET th developed using the 6 generation of STripFET™ DeepGATE™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.6 $0Y Order code STU80N4F6 Table 1. Device summary Marking Package 80N4F6 IPAK Packaging Tube February 2014 This is information on a product in full production.DocID023839 Rev 4 1/13 www.st.com 13 Contents Contents STU80N4F6 1 Electrical ratings

Features

TAB IPAK 3 2 1 Figure 1. Internal schematic diagram 'Ć7$%.
Order code STU80N4F6 VDS 40 V RDS(on) max ID 6.3 mΩ 80 A.
Low gate charge.
Very low on-resistance.
High avalanche ruggedness.
