STU8NM60ND N-Channel MOSFET

STU8NM60ND Description

isc N-Channel MOSFET Transistor STU8NM60ND .

STU8NM60ND Features

* Drain Current
* ID= 7A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.7Ω(Max)
* 100% avalanche tested

STU8NM60ND Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 7 A IDM Drain Current-Single Pluse 28 A PD Total Dissipation @TC=25℃ 70 W TJ Max. Ope

📥 Download Datasheet

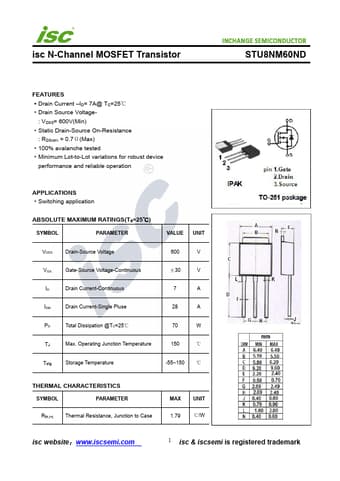

Preview of STU8NM60ND PDF
datasheet Preview Page 2

Datasheet Details

Part number
STU8NM60ND
Manufacturer
INCHANGE
File Size
283.97 KB
Datasheet
STU8NM60ND-INCHANGE.pdf
Description
N-Channel MOSFET
