STW22N95K5 N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

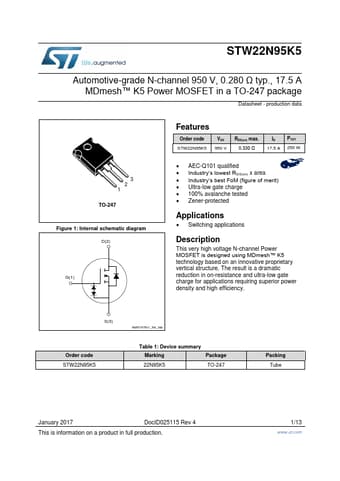

STW22N95K5 Automotive-grade N-channel 950 V, 0.280 Ω typ., 17.5 A Zener-protected SuperMESH™ 5 Power MOSFET Datasheet - production data .
This device is an N-channel Power MOSFET developed using SuperMESH™ 5 technology.

📥 Download Datasheet

Preview of STW22N95K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 3 2 1 TO-247 Order code VDS RDS(on)max ID PTOT STW22N95K5 950 V 0.330 Ω 17.5 A 250 W

Applications

* and AEC-Q101 qualified
* Worldwide best FOM (figure of merit)
* Ultra low gate charge
* 100% avalanche tested
* Zener-protected Figure 1. Internal schematic diagram D(2) Applications
