STW28N60DM2 N-channel Power MOSFET

STW28N60DM2 Description

STB28N60DM2, STP28N60DM2, STW28N60DM2 N-channel 600 V, 0.13 Ω typ., 21 A MDmesh™ DM2 Power MOSFETs in D²PAK, TO-220 and TO-247 packages Datasheet - pr.
These high voltage N-channel Power MOSFETs are part of the MDmesh™ DM2 fast recovery diode series.

STW28N60DM2 Features

* Order code STB28N60DM2 STP28N60DM2 STW28N60DM2 VDS @ TJmax. 600 V RDS(on) max. ID PTOT 0.16 Ω 21 A 170 W Figure 1: Internal schematic diagram
* Fast-recovery body diode
* Extremely low gate charge and input capacitance
* Low on-resistance
* 100% avalanche tested
* Extremely

📥 Download Datasheet

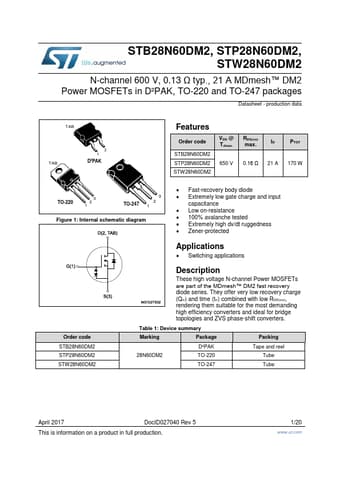

Preview of STW28N60DM2 PDF
