STW28N65M2

N-channel Power MOSFET

STMicroelectronics

STW28N65M2 Features

* Order codes STB28N65M2 STF28N65M2 STP28N65M2 STW28N65M2 VDS RDS(on) max 650 V 0.18 Ω ID 20 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Descr

STW28N65M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. Or.

STW28N65M2 Datasheet (1.16 MB)

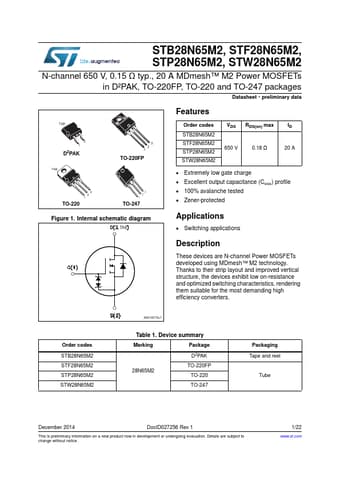

STW28N65M2 Datasheet Preview — Preview of STW28N65M2 PDF

Datasheet Details

Part number:

STW28N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

1.16 MB

Description:

N-channel power mosfet.
STB28N65M2, STF28N65M2, STP28N65M2, STW28N65M2 N-channel 650 V, 0.15 Ω typ., 20 A MDmesh™ M2 Power MOSFETs in D²PAK, TO-220FP, TO-220 and TO-247 packa.
