STW28NK60Z N-CHANNEL MOSFET

STW28NK60Z Description

STW28NK60Z N-CHANNEL 600 V - 0.155Ω - 27A TO-247 Zener-Protected SuperMESH™ MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STW28NK60Z Features

* TYPE STW28NK60Z s s Figure 1: Package ID 27 A PW 350 W VDSS 600 V RDS(on) < 0.185 Ω TYPICAL RDS(on) = 0.155 Ω EXTREMELY HIGH dv/dt CAPABILITY s 100% AVALANCHE TESTED www. DataSheet4U. com s GATE CHARGE MINIMIZED s VERY LOW INTRINSIC CAPACITANCES s VERY GOOD MANUFACTURING REPEATIBILITY TO-247 DESCR

STW28NK60Z Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES s WELDING MACHINES s LIGHTING 3 2 1 Figure 2: Internal Schematic Diagram Table 2: Order Codes PART NUMBER STW28NK60Z MARKING W28NK60Z PACKAGE TO-247 PACKAGING TUBE Rev. 1 November 2004 1/10 STW28NK60Z Table 3: Absolute Max

📥 Download Datasheet

Preview of STW28NK60Z PDF

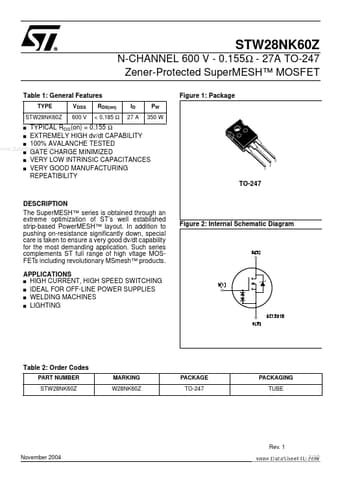

datasheet Preview Page 2 datasheet Preview Page 3
