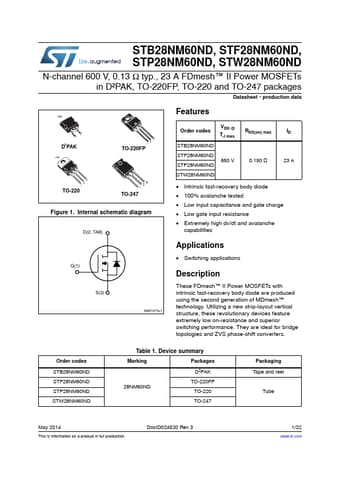

STW28NM60ND Datasheet, Mosfet, STMicroelectronics

STW28NM60ND Features

• Mosfet Order codes VDS @ TJ max. RDS(on) max ID STB28NM60ND STF28NM60ND 650 V STP28NM60ND 0.150 Ω 23 A STW28NM60ND
• Intrinsic fast-recovery body diode
• 100% avalanc

PDF File Details

Part number:

STW28NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

1.59MB

Download:

📄 Datasheet

Description:

N-channel mosfet. These FDmesh™ II Power MOSFETs with 6 intrinsic fast-recovery body diode are produced using the second generation of MDmesh™

STW28NM60ND Application

• Applications
• Switching applications Description These FDmesh™ II Power MOSFETs with 6 intrinsic fast-recovery body diode are produc
