STW38N65M5-4 - N-channel Power MOSFET

Name: STW38N65M5-4
SKU: STW38N65M5-4-1327389

STMicroelectronics

📥 Download Datasheet

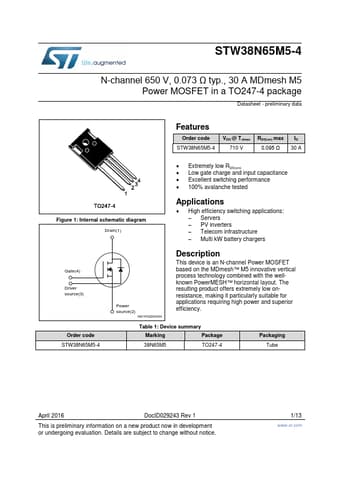

STW38N65M5-4 Datasheet Preview — Preview of STW38N65M5-4 PDF

Datasheet Details

Part number	STW38N65M5-4
Manufacturer	STMicroelectronics
File Size	275.20 KB
Description	N-channel Power MOSFET
Datasheet	STW38N65M5-4-STMicroelectronics.pdf

STW38N65M5-4 Product details

Description

This device is an N-channel Power MOSFET based on the MDmesh™ M5 innovative vertical process technology combined with the wellknown PowerMESH™ horizontal layout.

Features

Order code STW38N65M5-4 VDS @ TJmax 710 V RDS(on) max 0.095 Ω ID 30 A.
Extremely low RDS(on).
Low gate charge and input capacitance.
Excellent switching performance.
100% avalanche tested Figure 1: Internal schematic diagram Drain(1).
