STW57N65M5

N-channel Power MOSFET

STW57N65M5 Features

* 3 2 1 TO-247 TO-247 long leads Order codes VDS @ TJmax RDS(on) max ID STW57N65M5 STWA57N65M5 710 V 0.063 Ω 42 A

* Worldwide best RDS(on)

* area amongst the silicon based devices

* Higher VDSS rating, high dv/dt capability

* Excellent switching performance

* Ea

STW57N65M5 General Description


*  6  $0Y These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is .

STW57N65M5 Datasheet (0.99 MB)

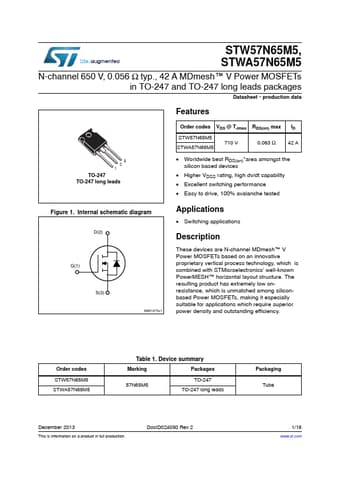

Preview of STW57N65M5 PDF

Datasheet Details

Part number:

STW57N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

0.99 MB

Description:

N-channel power mosfet.
STW57N65M5, STWA57N65M5 N-channel 650 V, 0.056 Ω typ., 42 A MDmesh™ V Power MOSFETs in TO-247 and TO-247 long leads packages Datasheet - production da.
