STW75N60DM6 - N-Channel MOSFET

STMicroelectronics

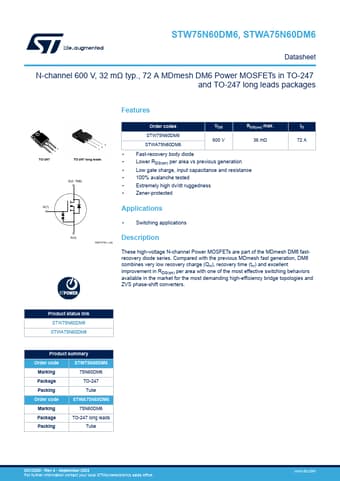

STW75N60DM6 Datasheet Preview — Preview of STW75N60DM6 PDF

Datasheet Details

Part number	STW75N60DM6
Manufacturer	STMicroelectronics ↗
File Size	659.44 KB
Description	N-Channel MOSFET
Datasheet	STW75N60DM6-STMicroelectronics.pdf

STW75N60DM6 Product details

Description

AM01476v1_tab These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fastrecovery diode series.Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching behaviors available in the market for the most demanding high-efficiency bridge topologies and ZVS phase-shift converters.Product status link STW75N60DM6 STWA75N60DM6 Product summar

Features

3 2 1 TO-247 3 12 TO-247 long leads D(2, TAB) Order codes VDS RDS(on) max. STW75N60DM6 STWA75N60DM6 600 V 36 mΩ.
Fast-recovery body diode.
Lower RDS(on) per area vs previous generation.
Low gate charge, input capacitance and resistance.
100% avalanche tested.
Extremely high dv/dt ruggedness.
Zener-protected ID 72 A G(1).
