STW7NA90 Datasheet (ST Microelectronics)

STW7NA90, N-CHANNEL MOSFET

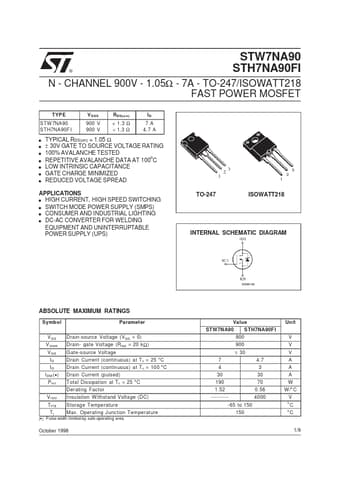

® STW7NA90 STH7NA90FI N - CHANNEL 900V - 1.05Ω - 7A - TO-247/ISOWATT218 FAST POWER MOSFET TYPE STW 7NA90 STH7NA90F I s s s s s s s V DSS 900 V 900 V R DS(on) < 1.3 Ω < 1.3 Ω ID 7 A 4.7 A TYPICAL RDS(on) = 1.05 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCE GATE CHARGE MINIMIZED REDUCED VOLTAGE SPREAD TO-247 1 2 3 2 1 3 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s CONSUMER
