STW7NA80FI, STW7NA80 Datasheet - ST Microelectronics

STW7NA80FI N-CHANNEL MOSFET

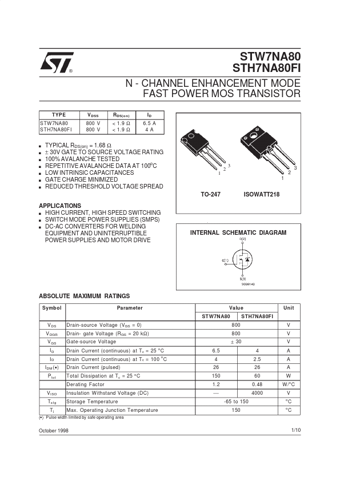

® STW7NA80 STH7NA80FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STW 7NA80 STH7NA80F I V DSS 800 V 800 V R DS(on) < 1.9 Ω < 1.9 Ω ID 6.5 A 4 A s s s s s s s TYPICAL RDS(on) = 1.68 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD 1 2 3 2 1 3 TO-247 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC C.

STW7NA80_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STW7NA80FI, STW7NA80. Please refer to the document for exact specifications by model.
STW7NA80FI Datasheet Preview Page 2 STW7NA80FI Datasheet Preview Page 3

Datasheet Details

Part number:

STW7NA80FI, STW7NA80

Manufacturer:

STMicroelectronics ↗

File Size:

122.06 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: STW7NA80FI, STW7NA80.
Please refer to the document for exact specifications by model.
