STW70N60M2 Datasheet - STMicroelectronics

N-CHANNEL MOSFET

STW70N60M2 Features

* Order codes VDS @ TJmax RDS(on) max ID STW70N60M2 650 V 0.040 Ω 68 A 3 2 1 TO-247 Figure 1. Internal schematic diagram D(2) G(1)

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

STW70N60M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. S(3).

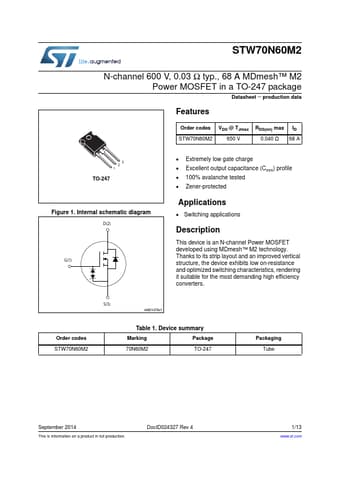

STW70N60M2 Datasheet (568.36 KB)
