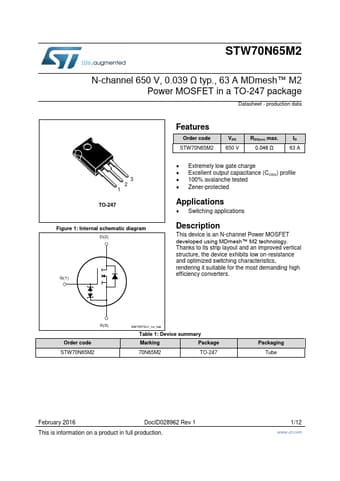

STW70N65M2 Datasheet, Mosfet, STMicroelectronics

STW70N65M2 Features

• Mosfet Order code STW70N65M2 VDS 650 V RDS(on) max. 0.046 Ω ID 63 A
• Extremely low gate charge
• Excellent output capacitance (COSS) profile
• 100% avalanche teste

PDF File Details

Part number:

STW70N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

587.14kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical s

STW70N65M2 Application

• Applications
• Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to
