STW7NA100FI, STW7NA100, N-CHANNEL MOSFET

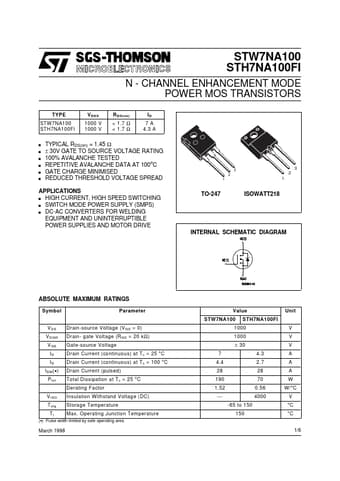

STW7NA100 STH7NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS TYPE STW7NA100 STH7NA100FI s s s s s s V DSS 1000 V 1000 V R DS(on) < 1.7 Ω < 1.7 Ω ID 7A 4.3 A TYPICAL RDS(on) = 1.45 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC GATE CHARGE MINIMISED REDUCED THRESHOLD VOLTAGE SPREAD TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINT
