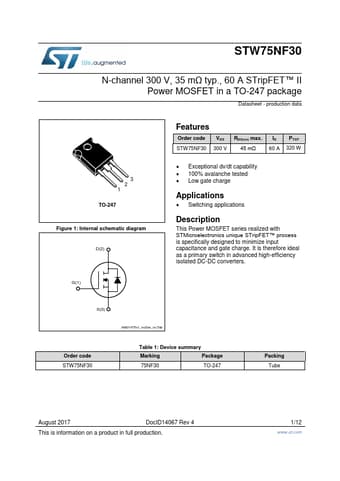

STW75NF30 Datasheet, Mosfet, STMicroelectronics

STW75NF30 Features

• Mosfet Type STW75NF30
• VDSS 300 V RDS(on) max < 0.045 Ω ID 60 A pW 320 W Exceptional dv/dt capability Low gate charge 100% Avalanche tested TO-247 2 1 3 Appl

PDF File Details

Part number:

STW75NF30

Manufacturer:

STMicroelectronics ↗

File Size:

479.47kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input c

STW75NF30 Application

• Applications Description This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minim
