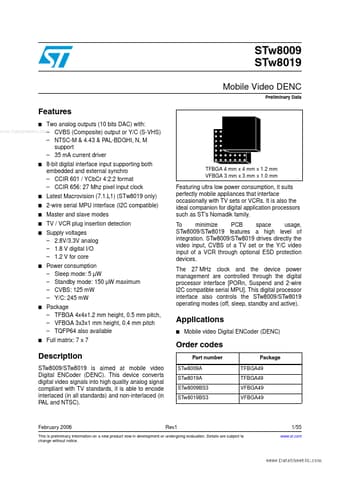

STW8009 Datasheet - STMicroelectronics

Mobile Video DENC

STW8009 Features

* Two analog outputs (10 bits DAC) with: www.DataSheet4U.com

* CVBS (Composite) output or Y/C (S-VHS)

* NTSC-M & 4.43 & PAL-BDGHI, N, M support

* 35 mA current driver

* STw8009 8-bit digital interface input supporting both embedded and external synchro

* CC

STW8009 General Description

STw8009/STw8019 is aimed at mobile video Digital ENCoder (DENC). This device converts digital video signals into high quality analog signal compliant with TV standards, it is able to encode interlaced (in all standards) and non-interlaced (in PAL and NTSC). February 2006 Rev1 1/55 www.st.com 1 T.

STW8009 Datasheet (650.05 KB)
