STW8019 Mobile Video DENC

STw8009/STw8019 is aimed at mobile video Digital ENCoder (DENC). This device converts digital video signals into high quality analog signal compliant with TV standards, it is able to encode interlaced (in all standards) and non-interlaced (in PAL and NTSC). February 2006 Rev1 1/55 www.st.com 1 T.

STW8019 Features

* Two analog outputs (10 bits DAC) with: www.DataSheet4U.com

* CVBS (Composite) output or Y/C (S-VHS)

* NTSC-M & 4.43 & PAL-BDGHI, N, M support

* 35 mA current driver

* STw8009 8-bit digital interface input supporting both embedded and external synchro

* CC

STW8009_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STW8019, STW8009. Please refer to the document for exact specifications by model.

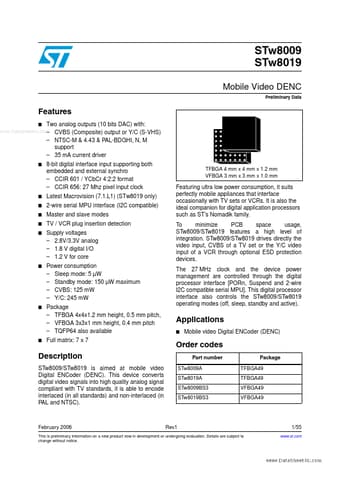

STW8019 Datasheet Preview Page 2 STW8019 Datasheet Preview Page 3

Datasheet Details

Part number:

STW8019, STW8009

Manufacturer:

STMicroelectronics ↗

File Size:

650.05 KB

Description:

Mobile video denc.

Note:

This datasheet PDF includes multiple part numbers: STW8019, STW8009.
Please refer to the document for exact specifications by model.
