STW81102 Multi-band RF frequency synthesizer

STMicroelectronics

Description

STW81102 Multi-band RF frequency synthesizer with integrated VCOs .
The STMicroelectronics STW81102 is an integrated RF synthesizer with voltage controlled oscillators (VCOs).

📥 Download Datasheet

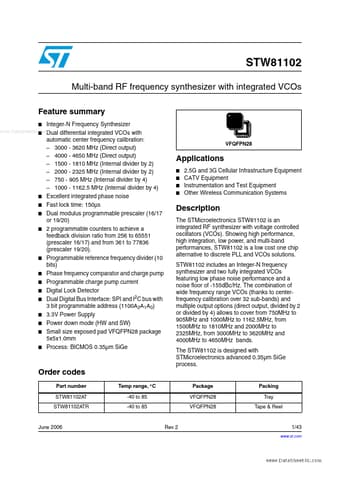

STW81102 Datasheet Preview — Preview of STW81102 PDF

Datasheet Specifications

Part number: STW81102
Manufacturer: STMicroelectronics ↗
File Size: 852.84 KB
Datasheet: STW81102_STMicroelectronics.pdf
Description: Multi-band RF frequency synthesizer

Features

* . . . . 22 5.1.1 5.1.2 5.1.3 5.1.4 5.1.5 Data validity
* . 22 START condition

Applications

* Excellent integrated phase noise Fast lock time: 150µs Dual modulus programmable prescaler (16/17 or 19/20) 2 programmable counters to achieve a feedback division ratio from 256 to 65551 (prescaler 16/17) and from 361 to 77836 (prescaler 19/20). Programmable reference frequency divider
