STW88N65M5-4 - N-CHANNEL MOSFET

STMicroelectronics

The STW88N65M5-4 by STMicroelectronics is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

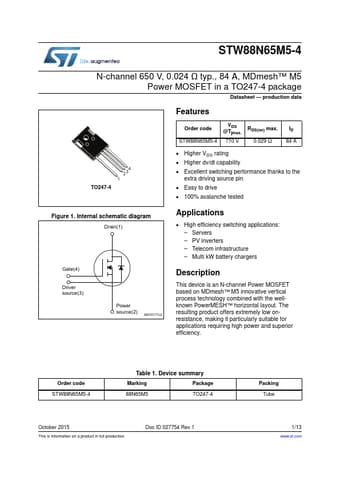

STW88N65M5-4 N-CHANNEL MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STW88N65M5-4** N-CHANNEL MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STW88N65M5-4
Manufacturer	STMicroelectronics
File Size	411.05 KB
Description	N-CHANNEL MOSFET
Datasheet	STW88N65M5-4-STMicroelectronics.pdf
Additional preview pages of the STW88N65M5-4 datasheet.

STW88N65M5-4 Product details

Description

This device is an N-channel Power MOSFET based on MDmesh™ M5 innovative vertical process technology combined with the wellknown PowerMESH™ horizontal layout.

Features

Order code STW88N65M5-4 VDS @Tjmax. 710 V RDS(on) max. 0.029 Ω ID 84 A.
Higher VDS rating.
Higher dv/dt capability.
Excellent switching performance thanks to the extra driving source pin.
Easy to drive.
100% avalanche tested Figure 1. Internal schematic diagram 'UDLQ.
DWH 'ULYHU VRXUFH 3RZHU VRXUFH $0Y.
