STW88N65M5

N-Channel Power MOSFET

STW88N65M5 Features

* Order codes VDS STW88N65M5 STWA88N65M5 650 V

* Higher VDSS rating

* Higher dv/dt capability

* Excellent switching performance

* Easy to drive

* 100% avalanche tested RDS(on) max. 29 mΩ ID 84 A G(1) S(3) AM01475v1_noZen Applications

* High eff

STW88N65M5 General Description

These devices are N-channel Power MOSFETs based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout. The resulting products offer extremely low on-resistance, making them particularly suitable for applications requiring high power and supe.

STW88N65M5 Datasheet (425.38 KB)

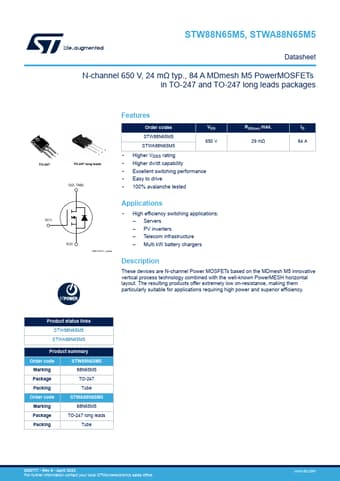

Preview of STW88N65M5 PDF

Datasheet Details

Part number:

STW88N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

425.38 KB

Description:

N-channel power mosfet.
STW88N65M5, STWA88N65M5 Datasheet N-channel 650 V, 24 mΩ typ., 84 A MDmesh M5 PowerMOSFETs in TO-247 and TO-247 long leads packages 3 2 1 TO-247 3 2.
