STWA40N90K5

N-channel Power MOSFET

STWA40N90K5 Features

* Order code STW40N90K5 STWA40N90K5 VDS 900 V RDS(on) max 0.099 Ω ID 40 A

* Industry’s lowest RDS(on) x area

* Industry’s best FoM (figure of merit)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description These ver

STWA40N90K5 General Description

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order .

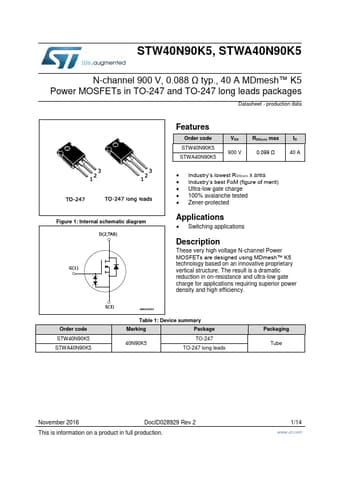

STWA40N90K5 Datasheet (612.84 KB)

Preview of STWA40N90K5 PDF

Datasheet Details

Part number:

STWA40N90K5

Manufacturer:

STMicroelectronics ↗

File Size:

612.84 KB

Description:

N-channel power mosfet.
STW40N90K5, STWA40N90K5 N-channel 900 V, 0.088 Ω typ., 40 A MDmesh™ K5 Power MOSFETs in TO-247 and TO-247 long leads packages Datasheet - production .
