STWA40N95DK5, STW40N95DK5 - N-channel Power MOSFET

STMicroelectronics

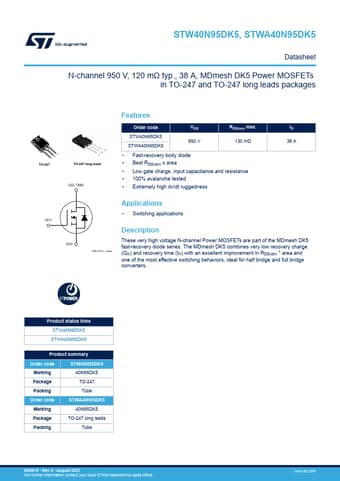

STWA40N95DK5 Datasheet Preview — This datasheet PDF includes multiple part numbers: STWA40N95DK5, STW40N95DK5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STWA40N95DK5, STW40N95DK5
Manufacturer	STMicroelectronics ↗
File Size	378.00 KB
Description	N-channel Power MOSFET
Datasheet	STW40N95DK5-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STWA40N95DK5, STW40N95DK5. Please refer to the document for exact specifications by model.

STWA40N95DK5 Product details

Description

These very high voltage N-channel Power MOSFETs are part of the MDmesh DK5 fast-recovery diode series. area and one of the most effective switching behaviors, ideal for half bridge and full bridge converters.

Features

Order code VDS RDS(on) max. STW40N95DK5 STWA40N95DK5 950 V 130 mΩ.
Fast-recovery body diode.
Best RDS(on) x area.
Low gate charge, input capacitance and resistance.
100% avalanche tested.
Extremely high dv/dt ruggedness ID 38 A G(1) S(3).
