TS555

Low-power single CMOS timer

TS555 Features

* Very low power consumption:

* 110 µA typ at VCC = 5 V

* 90 µa typ at VCC = 3 V

* High maximum astable frequency of 2.7 MHz

* Pin-to-pin functionally-compatible with bipolar NE555(a)

* Wide voltage range: +2 V to +16 V

* Supply current spikes

TS555 General Description

The TS555 is a single CMOS timer with very low consumption: I(cIccc(T(TYYPP) )NTES555555(a=) 110 µA at = 3 mA), VCC = +5 V versus and high frequency: (f(fmf(maxa)xN.) TES55555(5a)==20.7.1MMHHzzv).ersus Timing remains accurate in both monostable and astable mode. The TS555 provides reduced.

TS555 Datasheet (234.44 KB)

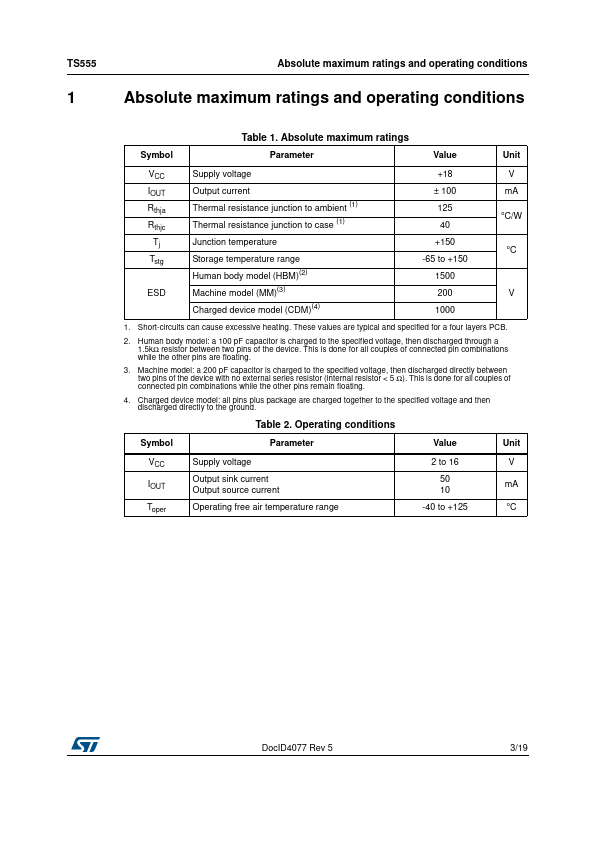

Preview of TS555 PDF

Datasheet Details

Part number:

TS555

Manufacturer:

STMicroelectronics ↗

File Size:

234.44 KB

Description:

Low-power single cmos timer.

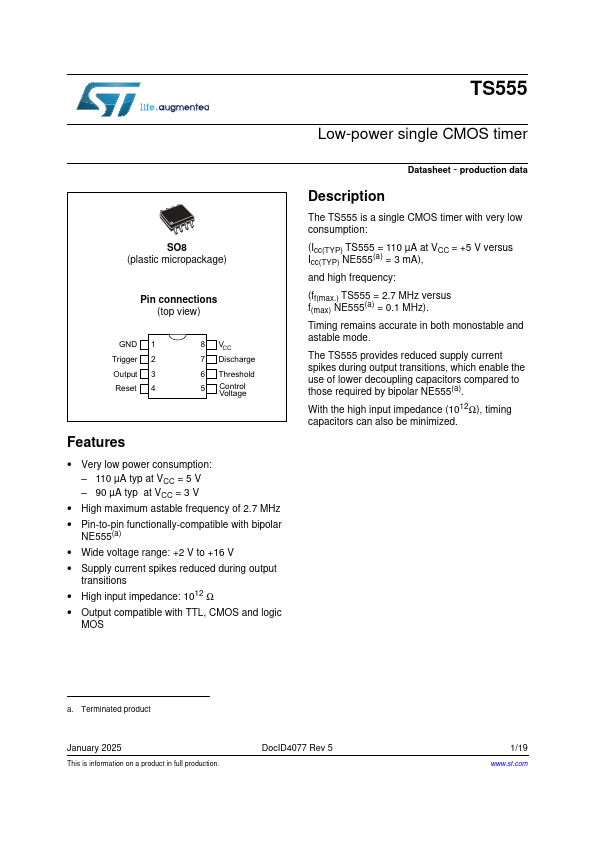

TS555 Low-power single CMOS timer SO8 (plastic micropackage) Pin connections (top view)
*1' 7ULJJHU 2XWSXW 5HVHW      9&&  'LVFKDUJH .
